Affordable 1530 5×10 Woodworking CNC Router for Sale in Callao, CA

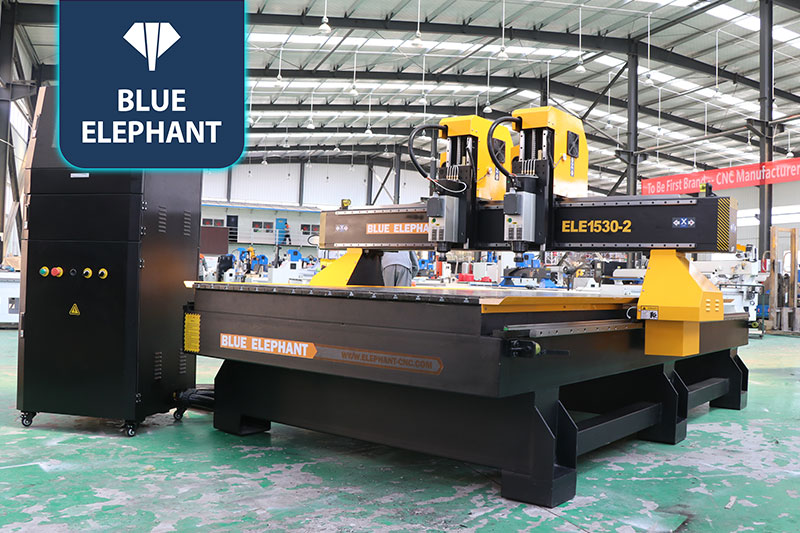

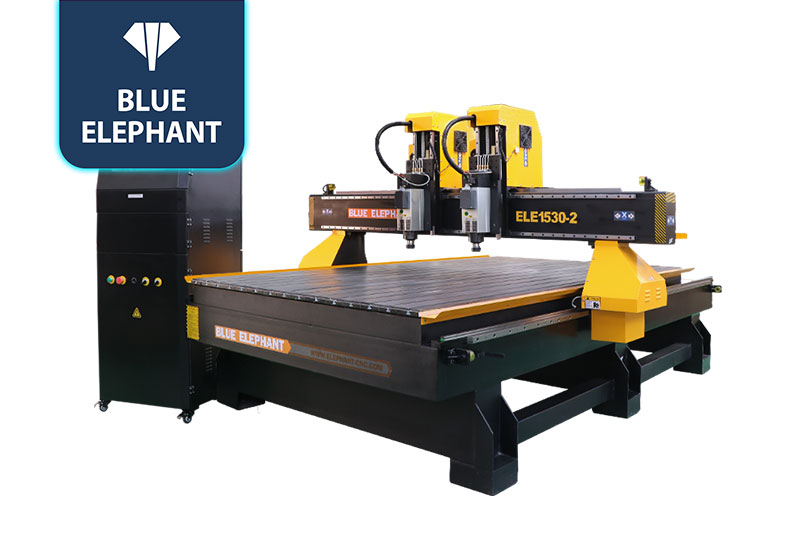

☆This is the latest independent CNC machine with double heads. It is not only affordable but also suitable for wood or metal engraving.
CNC Router Machines Video
features
- Nc studio control system is easy to learn and use.

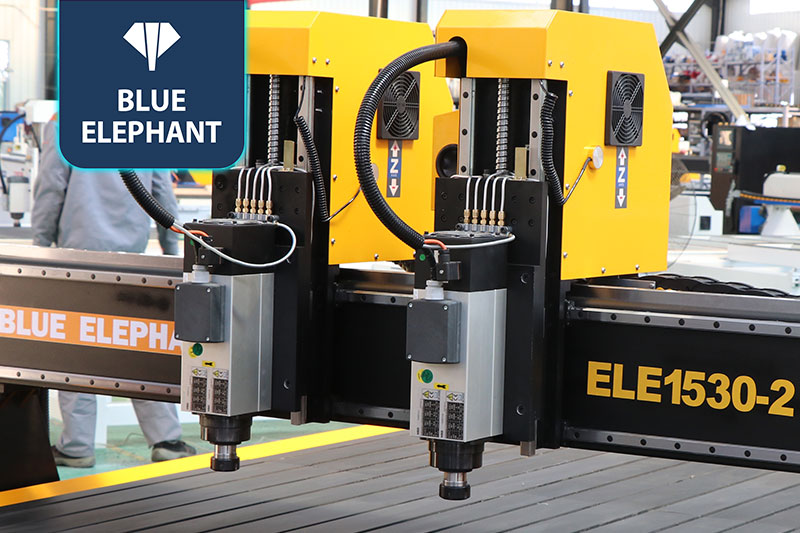

- Two independent spindles can work together to achieve high production efficiency.
- With the new type thicker and bigger heavy duty body, it has stable performance.
Parameters
| Model | ELECNC-1530DS |
| Working area | 1500*3000*200mm (can be customized) |
| Voltage | 380V, 3ph, 50Hz (option) |
| Control system | Original Ncstudio (Wei hong) PM95A computer controller |
| Spindle | Italy HSD 7KW Air cooling spindle, 2 heads, 24000RPM |
| Inverter | Chinese Fuling inverter 7.5KW |
| Motor and driver | 850w Yaskawa servo motors and drive |
| Table structure | New type thicker and bigger heavy duty body |
| Table surface | T-slot work table |
| X,Y, Z axis transmission | Helical rack on X,Y axis and Taiwan TBI ball screw on Z axis |
| Linear rail | Taiwan HIWIN Linear square guide #20 |
| Control box | Independent computer control box |
| Limited switch | Japan Omron limited switch |
| Towline | Highly flexible towline, fire-resistant double-sheathed shanghai Cardiff cable |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, couches, stools, benches, beds, desks, night stands, bunks, cupboard, tea boards.
Decoration industry: door frames, handrails, building columns, pillars, table legs, chair legs, photo frames, mirror frames, screens, lights, holiday decorations.
Craft industry: artworks, gifts, souvenirs, clock frames, stamps, badges, medals, trophies, holiday ornaments.
